Main purpose and tool properties:
class of modern high-precise dressing diamond tools of compound profile providing the realisation of high-efficient process of shaped cutting grinding in production on usual (grinding) equipment the most compound and labour- consuming details of the type: locks of blades of gas-turbine engines, bearings of motor valves, ball fingers, gears, spiral and bold-spiral combinations, blades, details of punches and press-forms and other main details in the conditions of large serial and mass production with exactness in some micrometers and productivity in many times topping the productivity of machining by blade tools..

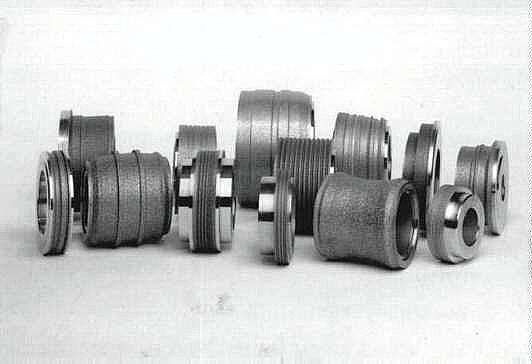

Rollers for machining mentioned above details.

Characteristic of the process:
efficiency of using rollers is to the effect that on working surface of circle the profile of future detail is copied with the help of roller and then by simple cutting of grinding circle in the model with a usage of redial (diametrical) feed in countable seconds (as the machining spreads over the detail, passing turning, milling and other types of operation.

Technical characteristics and main sizes:
Rollers are manufactured according to the drowings agreed with the customer.
Configuration of profile is unlimited.
There are some limitation to general dimension: width (hight of roller) should be no more than 150mm, diameter of roller 110-120 mm.
Angle roller are produced both one-and two-sided from module 1.5 to 8.0.

Tolerance range of matching bore - H3 Parallelity tolerance - 0.003mm Planeness tolerance - 0.003mm Circular runout - 0.002mm Face runout - 0.002mm
Tolerance on length - 0.005mm Tolerance on height (S)- 0.002mm Cylindricity tolerance - 0.002mm Lineraty tolerance - 0.002mm
Surface profile tolerance - 0.002mm Length and step tolerance range L=0.02mm, S=0.01mm
Minimum radius tolerance range R=0.15mm Angle tolerance - 3'

Lead tolerance +-0.002mm Accumulative error - 0.0015/100
Runout - 0.004mm

Small batches of tools can be produced in 4-5 weeks. Any form of payment is discussed during official order registration.
